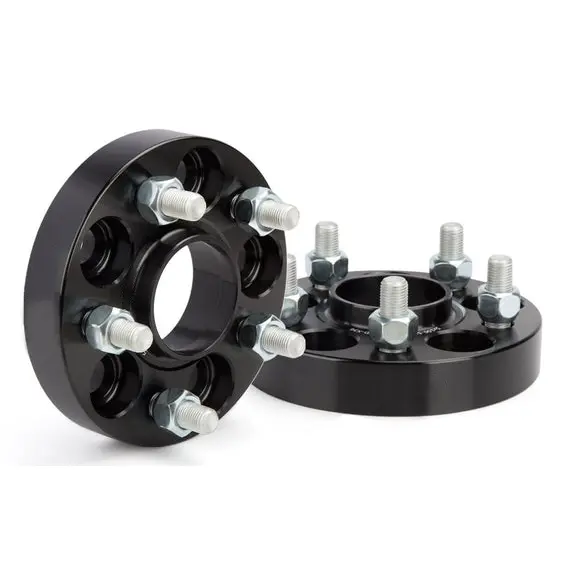

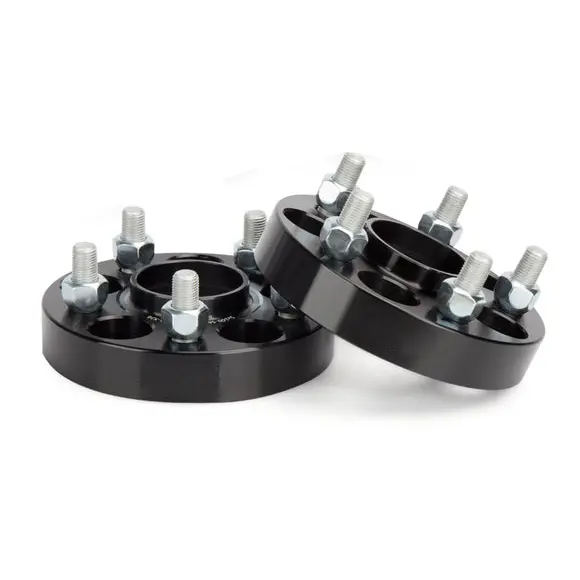

Throughout the manufacturing process of the PCD 5x100 CB57.1 Wheel Spacer Adapter, we consistently adhere to the principle of "safety first, precision foremost."
Our PCD 5x100 CB57.1 Wheel Spacer Adapter utilizes a high-pressure forging process, rather than the cheaper die-casting.
Dense Structure: Forging eliminates porosity and looseness within the material, significantly improving fatigue resistance.
High Safety: Effectively avoids the risk of cracks caused by metal fatigue during prolonged high-speed driving.
We use advanced machining centers to precision-machine the PCD 5x100 CB57.1 Wheel Spacer Adapter:
Tolerance Control: Machining accuracy is controlled within 0.05mm, ensuring a perfect fit between the flange surface and the wheel hub.
Dynamic Balance Optimization: Strict flatness requirements effectively reduce steering wheel vibration during high-speed vehicle operation.

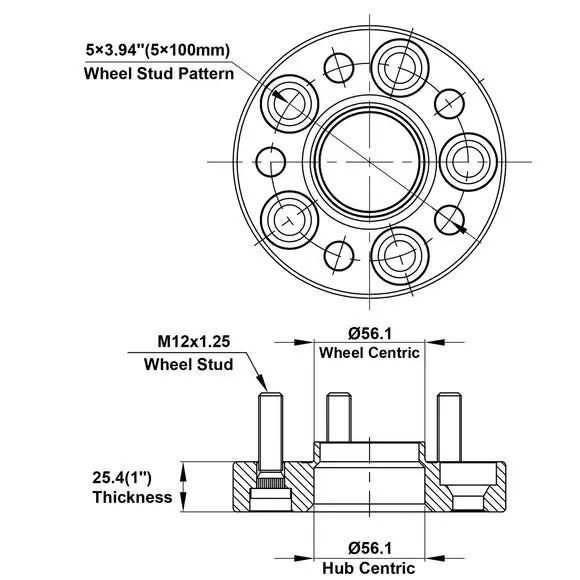

| Feature | Specifications |
| Product Name | PCD 5x100 CB57.1 Wheel Spacer Adapter |
| PCD (Pitch Circle Diameter) | 5x100 mm |
| CB (Center Bore) | 57.1 mm |
| Material Options | Aluminum Alloy 6061-T6 / 7075-T6 |
| Manufacturing Process | Forged + CNC Machined |
| Thread Pitch | M12x1.5 / M14x1.5 / Custom |
| Thickness Range | 15mm, 20mm, 25mm, 30mm (Customizable) |
| Surface Treatment | Anodized Black / Silver / Custom Colors |
| Tolerance | ≤ 0.05 mm |
As a brand with decades of experience in automotive chassis components, J&W Auto Part offers the following advantages in producing the PCD 5x100 CB57.1 Wheel Spacer Adapter:
Material Reliability: Made by default from 6061-T6 aluminum alloy, offering excellent corrosion resistance and hardness to meet the needs of both daily and high-performance driving.
Full Inspection Process: Every PCD 5x100 CB57.1 Wheel Spacer Adapter undergoes rigorous dimensional calibration and surface flaw detection before leaving the factory.
Lightweight Design: Compared to traditional steel spacers, our forged aluminum alloy parts are lighter, effectively reducing unsprung mass and improving handling response.
Q1: What precautions should be taken when installing the PCD 5x100 CB57.1 Wheel Spacer Adapter?
A: We strongly recommend using a torque wrench to evenly tighten each bolt according to the manufacturer's specifications. Uneven torque is a major cause of vibration at high speeds. Q2: What is the difference between 6061-T6 and 7075-T6 materials?
A: 6061-T6 is sufficient for over 95% of street use scenarios, offering good value for money; 7075-T6 has higher yield strength and is suitable for track environments with extreme requirements for weight reduction and strength.
Q3: Do you offer customization services?
A: Yes. J&W Auto Part supports OEM and ODM services. We can customize PCD 5x100 CB57.1 Wheel Spacer Adapters with specific thicknesses, center bore diameters, or colors based on your design drawings or samples.
