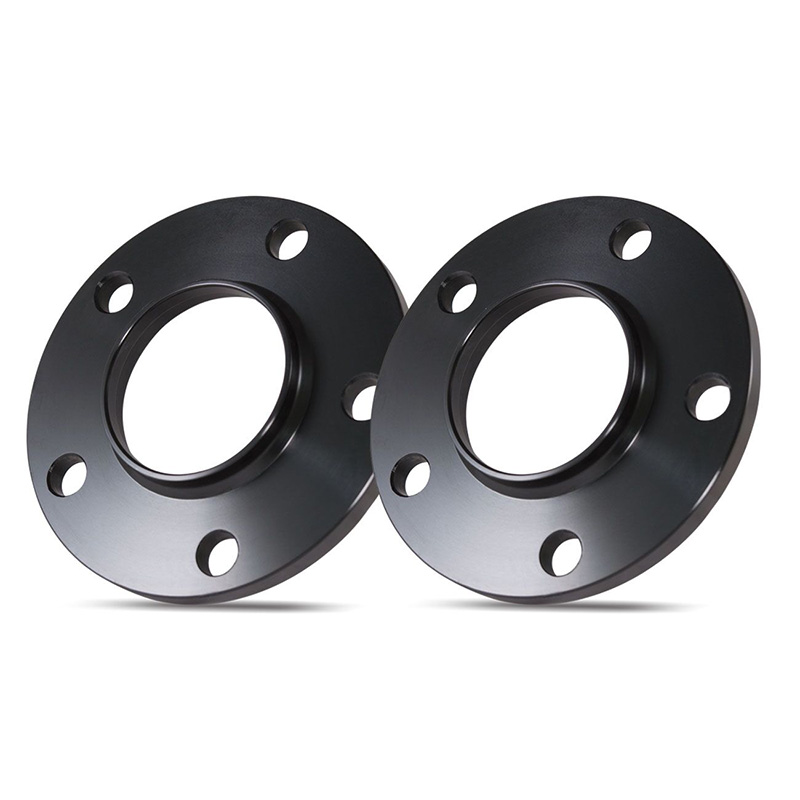

Mercedes wheel spacers adapter

J&W Auto Part Mercedes wheel spacers adapters are engineered and manufactured by a premier automotive hardware supplier in China. Designed specifically for luxury and high-performance Mercedes-Benz platforms—including the C-Class, E-Class, S-Class, GLC, GLE, and AMG models—our spacers employ precision CNC machining and rigorous load testing to ensure flawless dimensional accuracy, high-speed stability, and track-certified safety.

Why Install Mercedes Wheel Spacers & Adapters?

A professionally engineered wheel spacer does more than simply push the wheel outward. Properly selected hub-centric spacers optimize vehicle track geometry, enhance alignment aesthetics, and create crucial clearance for upgraded braking systems.

Key Benefits

Aggressive Stance: Improves wheel-to-fender flushness, eliminating the tucked factory look.

Enhanced Handling: Increases track width to reduce body roll and maximize cornering stability.

Big Brake Kit (BBK) Clearance: Creates necessary clearance for larger aftermarket brake calipers (e.g., Brembo, AP Racing, or larger AMG brakes).

Zero Rubbing Issues: Resolves inner wheel rubbing against liners, struts, or suspension components when fitting wider tires.

Steering Response: Improves steering feedback and high-speed driving confidence.

Available Installation Systems

We supply two mainstream installation configurations to match different driving requirements, performance demands, and thickness preferences.

1. Extended Bolt Wheel Spacer (Slip-On Type)

This design slips directly over the OEM hub, requiring longer wheel bolts to secure the wheel assembly.

Recommended For: Thin profile requirements (3mm to 15mm), daily street driving, and mild cosmetic stance adjustments.

Advantages: Ultra-lightweight structure, cost-effective setup, and quick installation.

Hardware Profile Example:

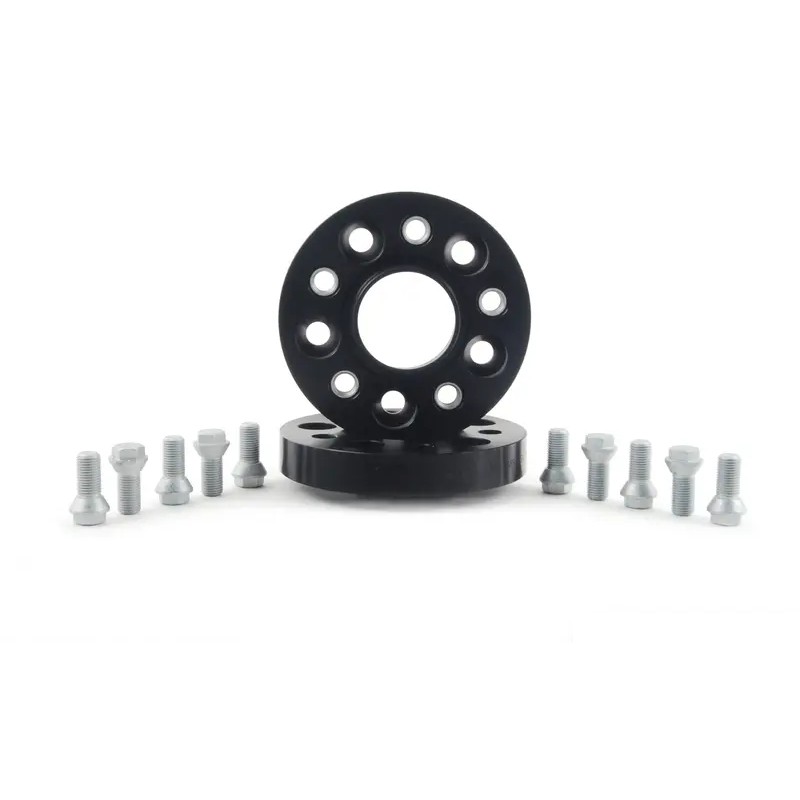

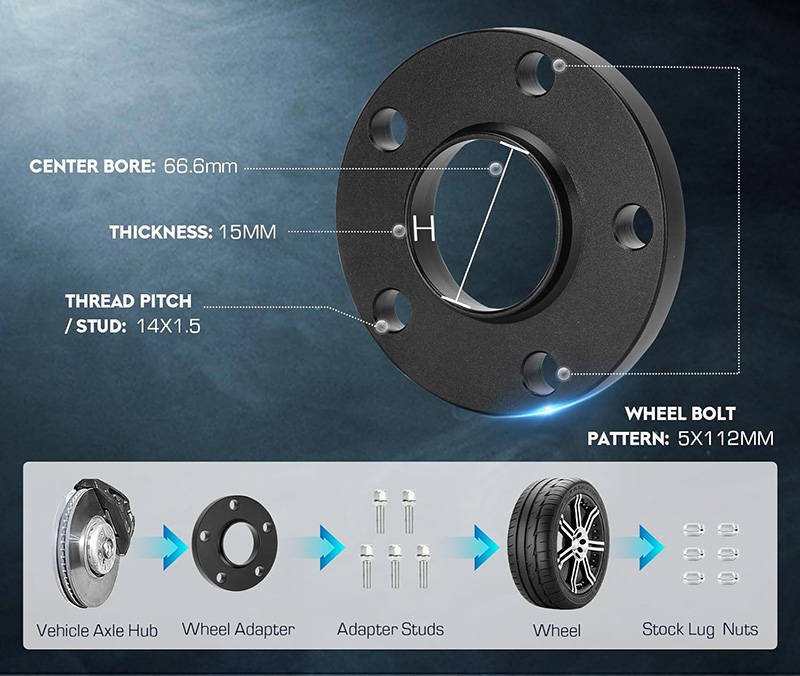

2. Bolt-On Wheel Spacer Adapter

Bolt-on spacers feature integrated, pre-installed pressed studs or heavy-duty thread inserts. The spacer bolts directly to the vehicle hub using factory hardware, and the wheel mounts to the spacer.

Recommended For: Thick profiles (typically 20mm to 50mm+), aggressive wheel offset corrections, high-performance tuning, and track applications.

Advantages: Maximum structural integrity, superior vibration resistance, independent wheel torque distribution, and extreme durability under heavy cornering loads.

Material Engineering & Mechanical Profiles

We construct our Mercedes wheel spacers adapter using premium 6061-T6 and 7075-T6 Aerospace-Grade Aluminum Alloys. Compared to heavy, conventional steel or iron spacers, our premium aluminum components offer immense tensile strength while drastically minimizing unsprung weight for superior suspension feedback.

The Compatibility Advantage: Most factory Mercedes-Benz and high-end aftermarket alloy wheels are manufactured from aluminum base alloys. By utilizing matching 6061 or 7075 T6 grades, we guarantee an identical Coefficient of Thermal Expansion (CTE). This prevents thermal stress concentration, micro-fretting wear, or bolt loosening caused by severe temperature fluctuations during hard braking.

Material Performance Data

Typical Mechanical Properties of 6061 Aluminum Alloy

Typical Mechanical Properties of 7075 Aluminum Alloy

Technical Fitment Guide (Mercedes-Benz Platforms)

Our standard catalog features hub-centric configurations engineered to match factory Mercedes hub specifications flawlessly, eliminating any risk of steering wheel shake at high speeds.

Note: Wheel specifications may vary depending on the production year, trim package, and aftermarket modifications. Please verify your vehicle's metrics before placing mass orders.

Customization & Engineering Services (OEM/ODM)

Operating a modernized manufacturing facility in Ningbo, Zhejiang, China, J&W Auto Part offers fully customizable production lines for global automotive distributors, retail brands, wholesalers, and specialized tuning shops.

Step-by-Step Custom Workflow

1. Consultation & Material Selection: We work closely with your purchasing team to define the specific mechanical requirements, vehicle loads, and target applications to select the correct aluminum grade.

2. CAD Blueprint Engineering: You provide the dimensions, and our mechanical engineering team designs precision 2D/3D CAD blueprints for your validation.

3. FEA Software Simulation: We subject the design to Finite Element Analysis (FEA) simulations. This stress-tests the yield strength under extreme simulated torque, cornering loads, and emergency braking scenarios to guarantee absolute structural integrity.

4. Prototyping & Sampling: We produce a low-volume, precision CNC sample batch and ship it directly to you for physical vehicle test-fitting.

5. Mass Production & Finishing: Upon your approval, we proceed with mass manufacturing utilizing our high-efficiency CNC milling stations, dynamic balancing equipment, automated anodizing lines (for anti-corrosion), and custom laser brand engraving.

Multi-Vehicle Custom Platform Support: Beyond standard Mercedes-Benz configurations, our engineering facility regularly manufactures custom conversion adapters for global heavy-duty vehicles, commercial fleets, and off-road applications—ranging from compact passenger specs to heavy-duty truck configurations (e.g., 6x135 PCD up to 87.1mm center bores).

How to Place an Order

Streamlining your global sourcing workflow with J&W Auto Part is direct and efficient:

1. Submit Your Parameters

Click "Send Inquiry" or contact our international sales desk with your required specifications:

Target Vehicle Applications or Fitment Dimensions (PCD, Hub Bore)

Desired Thickness Range (e.g., 12mm, 15mm, 20mm)

Preferred Material Grade & Surface Finish (e.g., 6061-T6, Black/Silver Hard Anodized)

Order Volume per SKU (Supports mixed wholesale orders)

2. Design Review & Commercial Quote

Our sales team will issue a comprehensive wholesale quotation based on your target volume. Upon structural agreement, our engineers will deliver finalized production blueprints within 24–48 hours.

3. Precision Manufacturing & Quality Assurance

Once the deposit is received, your batch moves directly into production. Every item undergoes rigorous internal testing, including thread pitch verification, dimensional tolerance inspections, concentricity evaluations, and micro-defect checks.

4. Global Logistics Support

We handle heavy-duty retail packaging, custom private labeling, and coordinate flexible shipping logistics (FOB, CIF, DDP) via major air, ocean, or express freight providers from the Port of Ningbo straight to your distribution center.
